  Bike Energy Harvester


The Lumi-Con Bike Energy Harvester is the perfect energy source for your bike.

The harvester is equipped with state of the art technology and "harvests" the energy from hub dynamo. Your smartphone is supplied continously with energy via a usual USB type A plug. Thus you can use your smartphone e.g. as navigator or map permanently or you can charge your smartphone.

Bike Harvester Overview

Test report from Fahrradzukunft(German).

Test report from cyclingabout (English).




Bike Harvester Type USB-P5CX


with additional
dynamo shut off
for fast downhills


USB_P5CX (.pdf-datasheet)

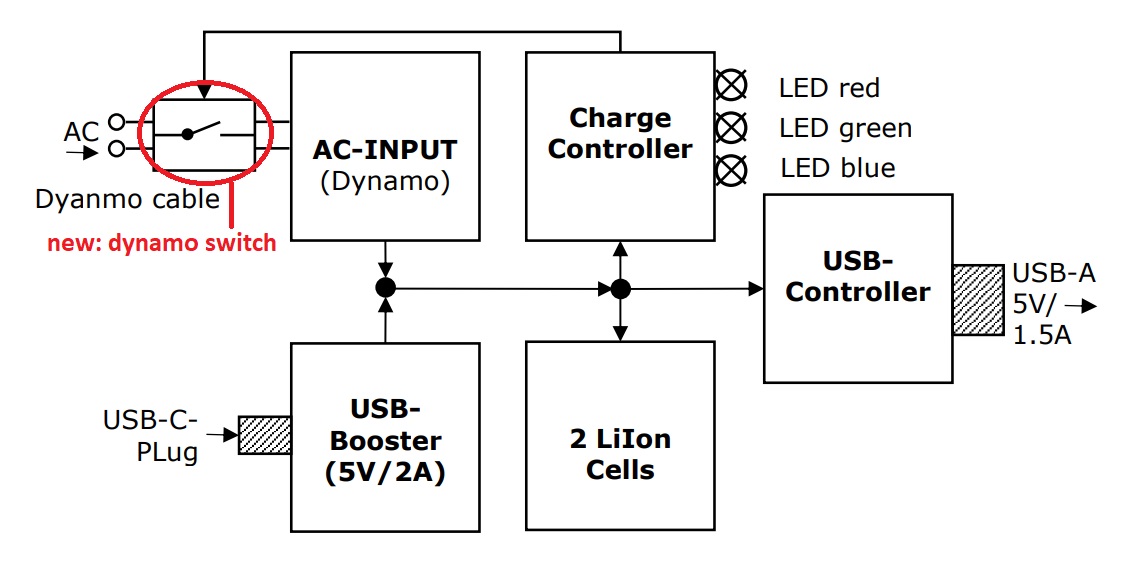

New: additional high-voltage and high-current switch for very fast and long-lasting downhills. The Switch disconnects the dyanmo from the harvester when the battery is full. All other features correspond to the Harvester USB-P5C.

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
- Highly efficient USB controller
- Battery capacitance 2 x 3500mAh (30Wh)
- Two charging inputs :
   - Hub dynamo input (6V/3W)
   - 5V/10W mains charger
- three LED display for
    - Ready
    - Ready (30% capacitance left)
    - Battery empty
    - Charging
    - Sleep mode
- Can be used as power bank
- Dimensions: 112 x 62 x 31mm
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mains charger 12V, munting material, USB cable, documentation
- Batteries are exchangeable

Link to the Shop




Bike Harvester Type USB-PMX

USB_PMX (.pdf-datasheet)

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
   - USB-C- or USB-Micro-Connector
- Highly efficient USB controller
- Battery capacitance 2 x 1200mAh
- Charging input:
   - Hub dynamo (6V/3W)
   - 12Vac mains charger (optional)
- Six LED display for
    - Battery status (4 LEDs)
    - Ready (30% charge left)
    - Battery empty
    - Charging
    - Sleep mode
- Dimensions: 159 x 22mm (length x diameter)
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mounting material, documentation
- Several connector options for dyanmo cable
- Mounting options

Optional
- Mains charger 12V
- Battery exchange service

Link to the Shop




Bike Harvester Type USB-P5C

USB_P5C (.pdf-datasheet)

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
- Highly efficient USB controller
- Battery capacitance 2 x 3500mAh (30Wh)
- Two charging inputs :
   - Hub dynamo input (6V/3W)
   - 5V/10W mains charger
- three LED display for
    - Ready
    - Ready (30% capacitance left)
    - Battery empty
    - Charging
    - Sleep mode
- Can be used as power bank
- Dimensions: 112 x 62 x 31mm
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mains charger 12V, munting material, USB cable, documentation
- Batteries are exchangeable

Link to the Shop




Bike Harvester Type USB-PM

USB_PM (.pdf-datasheet)

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
   - USB-C- or USB-Micro-Connector
- Highly efficient USB controller
- Battery capacitance 3500mAh
- Charging input:
   - Hub dynamo (6V/3W)
   - 12Vac mains charger (optional)
- Six LED display for
    - Battery status (4 LEDs)
    - Ready (30% charge left)
    - Battery empty
    - Charging
    - Sleep mode
- Dimensions: 159 x 22mm (length x diameter)
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mounting material, documentation
- Several connector options for dyanmo cable
- Mounting options

Optional
- Mains charger 12V
- Battery exchange service

Link to the Shop




Bike Harvester Type USB-P12

Finally available again after a long time from mid-March 2023!

USB_P12 (.pdf-datasheet)

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
- Highly efficient USB controller
- Battery capacitance 2 x 2500mAh (21Wh)
- Two charging inputs :
   - Hub dynamo input (6V/3W)
   - 12V/20W mains charger
- three LED display for
    - Ready
    - Ready (30% capacitance left)
    - Battery empty
    - Charging
    - Sleep mode
- Can be used as power bank
- Dimensions: 112 x 62 x 31mm
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mains charger 12V, munting material, USB cable, documentation
- Batteries are exchangeable
- Battery upgrade to 2 x 3500mAh available in the shop

Link to the Shop




Bike Harvester Typ USB-P5

USB_P5 (.pdf-datasheet)

- Integrated battery provides stable supply
- 7.5W-USB-Output (5V/1.5A)
- Highly efficient USB controller
- Battery capacitance 2 x 2500mAh (21Wh)
- Two charging inputs :
   - Hub dynamo input (6V/3W)
   - 5V/10W mains charger
- three LED display for
    - Ready
    - Ready (30% capacitance left)
    - Battery empty
    - Charging
    - Sleep mode
- Can be used as power bank
- Dimensions: 112 x 62 x 31mm
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mains charger 12V, munting material, USB cable, documentation
- Batteries are exchangeable
- Battery upgrade to 2 x 3500mAh available in the shop

Link to the Shop




Bike Harvester Typ USB-D

USB_D (.pdf-datasheet)

- Integrated battery provides stable supply
- 5W-USB-Output (5V/1A)
- Highly efficient USB controller
- Battery capacitance 2 x 2500mAh (21Wh)
- Two electrically identical charging inputs :
   - Hub dynamo input (6V/3W)
   - 12V/10W mains charger
- three LED display for
    - Ready
    - Battery empty
    - Charging
    - Sleep mode
- Can be used as power bank
- Dimensions: 112 x 62 x 31mm
- Over voltage protection at dynamo input
- Extremely small power consumption during sleep mode
- Heat protection
- Included: mains charger 12V, mounting material, USB cable, documentation
- Batteries are exchangeable
- Battery upgrade to 2 x 3500mAh available in the shop

Link to the Shop


  Bike Harvester Accessories

Various accessories for our
Lumi-Con Harvesters
you will find in the shop




Removeable Mounting Set for all Harvesters


USB_-H (.pdf-datasheet)
USB-H-PM (.pdf-datasheet)

- Electrically and mechanically removable mounting
- Stainless steel holder, hook and loop fastener
- Cable ties, dynamo cable with connector, evt. coupler (for P5, P12, PM)
- Detailed description

- A Mounting Set is available in the shop for either USB-P, USB-PM or USB-P

Link to the Shop




Connector for Hub Dynamo (Shimano)

- Shimamo connector

Link to the Shop




Power Connector

- Power connector for harvester
- 1.9/5.5mm
- for soldering, cover with thread

- at USB-D you can directly connect hub dynamo to power input (removeable connection to hub dynamo). For other types see comment below (Power Coupler).

- Mounting service can be ordered in the shop

Link to the Shop




Power Coupler

- Power coupler, suitable for power connector (as above)
- 1.9/5.5mm
- for soldering, cover with thread - used together with Power Connector for removeable connection to hub dynamo at P5 and P12.

- Mounting service can be ordered in the shop

Link to the Shop




Flat Plug Sleeves for SON-Hub-Dynamo

- Flat Plug Sleeves for connecting Harvester to SON-Hub-Dynamo
- 2 x Flat Plug Sleeves 4mm
- shrink hose, 2 x10mm

- Mounting service can be ordered in the shop

Link to the Shop




Flat Plug Sleeves with Multi Connector
for SON-Hub-Dynamo

- Flat Plug Sleeves with Multi Connector
  for Connecting the Harvester to SON-Dynamo
  with male connector (e. g. for light)
- 2 x Flat Plug Sleeves 4mm
- shrink hose, 2 x 10mm

- Mounting service can be ordered in the shop

Link to the Shop
